300kg Sand Grinding Mill 5um Water Sand Mill For Paint

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: AP30
Minimum Order Quantity: 1set
Price: USD4000--USD50000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 30kW Voltage: 380V And 220V
Litre: 30 L Inner Chamber Material: Silicon Carbide Ceramics
Warranty: 1 Year Production Capacity: 300-500kg/h
Finenes: 5-10um Experience: 28 Years
Explosion: Non Explosion Weight: 1500kg
High Light:

300kg Sand Grinding Mill


5um Water Base Sand Grinding Mill


5um Water sand mill for paint

Product Description

High Quality Water Base Paint Coating 30 L Horizontal Sand Grinding Mill Low Temperature
The main introduction of Sand Grinding Mil:
1.  High indepent technology: This Sand grinding mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with independent technology could  resistant to more than 1600 kinds of solvents.
2.   Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.
3.  High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.
4.  Different materials  chosed  for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.
5. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.

The Technical Data of Sand Grinding Mil:

No main parameters AP30 Note
1 Non Explosion-proof motor kW 30kW (Non Ex)

Effective volume of

grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2000*900*2000
6 Weight (kg) 1500

The Configuration instructions:
  1. Outer chamber materials: 304 stainless steel
   2. Inner Chamber materials: SIC
   3 .Dispersing shaft: 40Cr with hard chromium plating
   4. Dispersing disk: PU coated 304 stainless steel
   5. Feeding and discharging end covers on the cylinder: 304 stainless steel
   6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
   7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
   8. Mechanical seal: Intelligent double mechanical seal with indepent technology
   9. Feeding pump: 1.” ARO diaphragm pump;
  10. Appliance configuration: Non Explosion-proof machine, contacts., Control  system :button type
  11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

"Oubo AP series of Sand Grinding mill

Working Volume




Grinding Beads




SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500


The Production show :

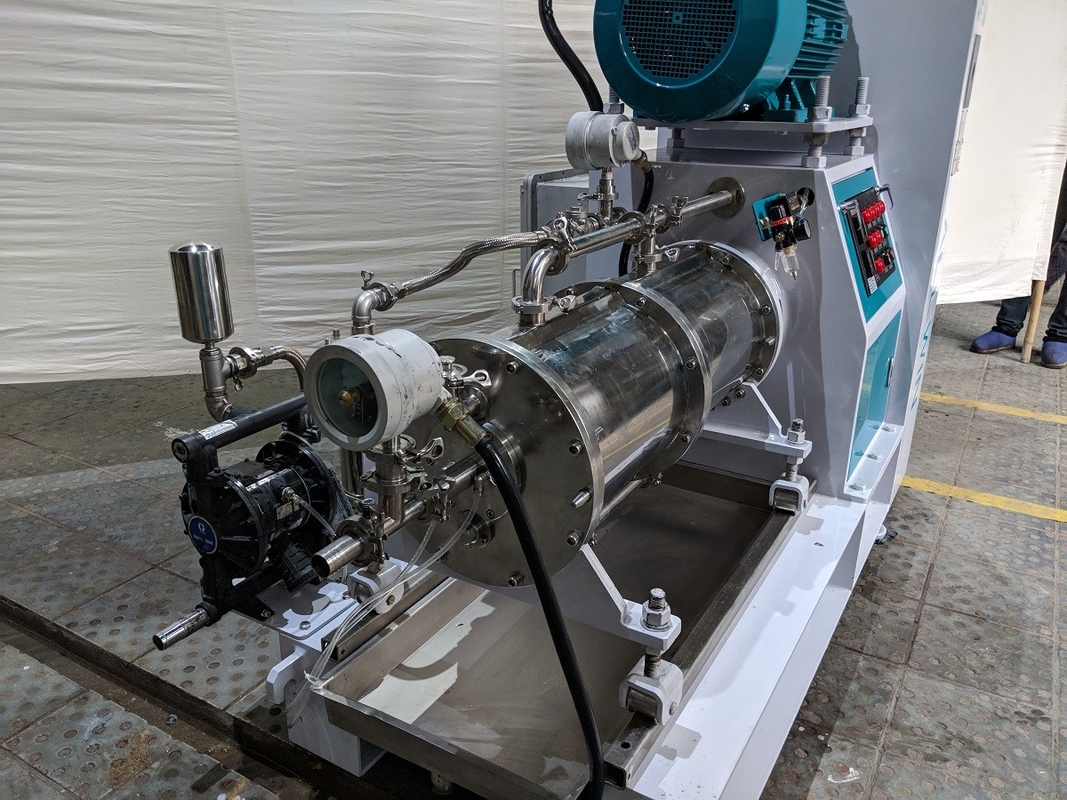

300kg Sand Grinding Mill 5um Water Sand Mill For Paint 0
300kg Sand Grinding Mill 5um Water Sand Mill For Paint 1
300kg Sand Grinding Mill 5um Water Sand Mill For Paint 2
The main processing equipment:The United States imported four axis Haas machining center

The packing and delivery :firstly anti-abrasion film and packed in wooden boxes, Then FCL and LCL Contianer for Seashipping

300kg Sand Grinding Mill 5um Water Sand Mill For Paint 3
