| Place of Origin: | Chognqing , China |
|---|---|
| Brand Name: | ALLWIN |
| Certification: | ISO9001 |
| Model Number: | SUPER Series |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 28000---65000 Per Unit |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20-30 Units per Month |
| Type: | Grinding And Dispersing Sand Mill Machine | Chamber Volume: | 30 L,50 L , 100 L , 250 L（different Volumes Available)） |
|---|---|---|---|
| Motor Power: | 30 KW,37 KW, 55 KW, 75 KW, 90 KW( According To Different Volume) | Explosion Performance: | Non Explosion, Explosion Available |
| Internal Chamber Material: | 9Cro18Mo Alloy Steel, Silicon Carbide Ceramics, SUS 304 Stainless Steel Available | External Chamber Merialat: | SUS 304 Stainless Steel |
| Warranty: | 1 Year For Other Parts Except For Wearing Parts | Usage: | Coating, Painting, Inks, Pesticides, Food, Food Additives, Cosmetics, Mining |
| High Light: | Wet 50L Sand Mill Machine,30KW painting Sand Mill Machine,30KW painting ink production machine |
||
Explosion-proof Customized Wet Grinding Horizontal Sand Mill Machine

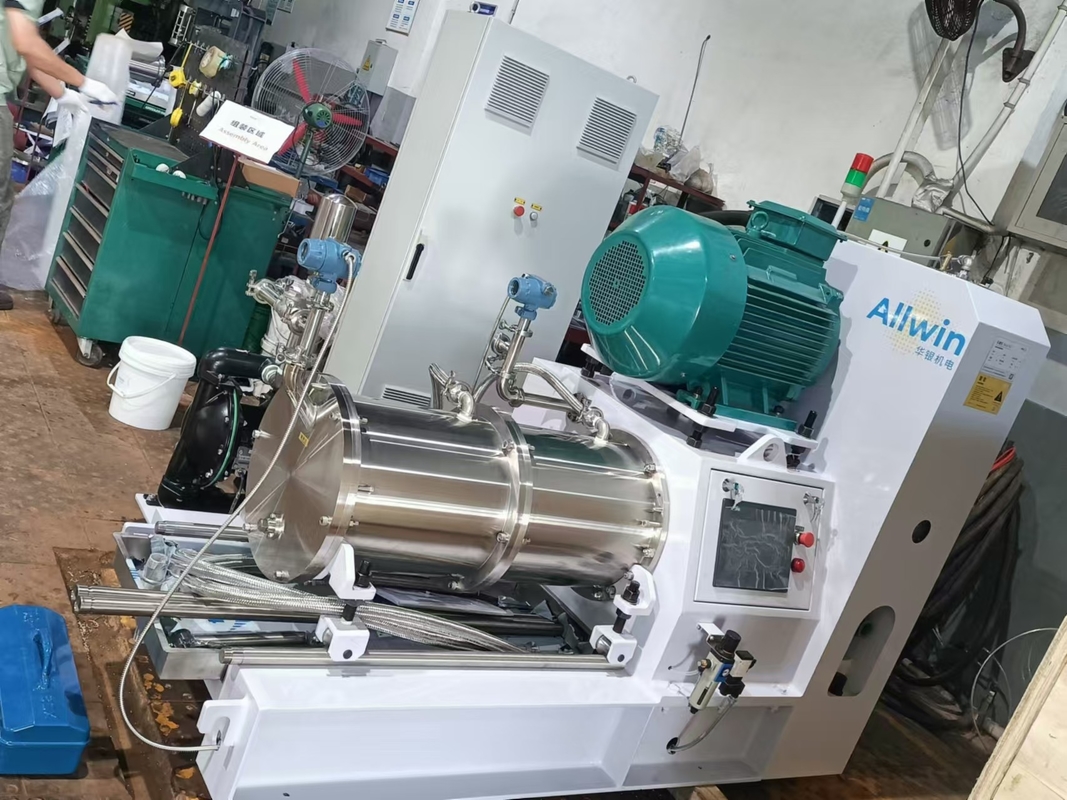

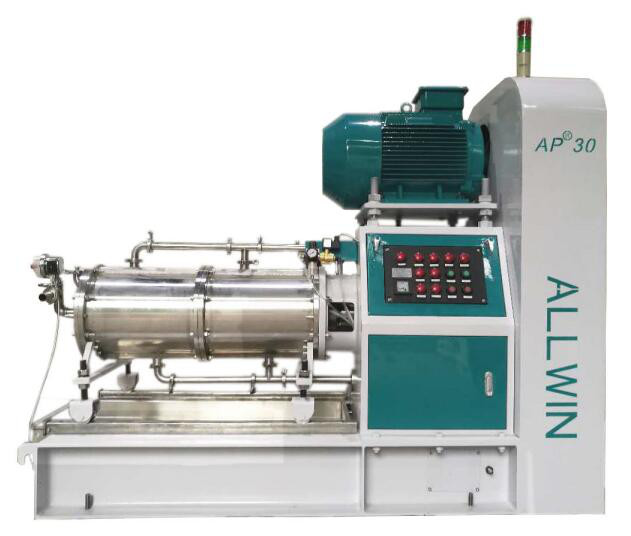

1. Display of Horizontal Sand Mill Machine
2. Key Spare Parts Picture of 50 L Horizontal Bead Mill
Allwin Patent Technology : Double mechanical seal, adopted anti-stealing technology
Different types and materials disks for different industries' application for customer's choice.
Shaft storage ensures non-deformation of metal stress
Silicon carbide ceramics internal chamber, while other materials also availble.
3.Technical data of horizontal sand mill machine
| No. |
Main Parameters
|
SUPER Series | Notes |
| 1 |
Motor Power (kW) |
22 kW ,30 kW, 37 KW, 55 KW, 75 KW, 90 KW available |
|
| 2 |
Effective volume of grinding chamber (L) |
30 L, 50 L, 100 L, 250 L | |
| 3 |
Water pressure (MPa) |
0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 |
Explosion Performance
|
Explosion-proof, Non explosion-proof available | |
| 6 |
Dimensions
|
Different dimensions according to specific volume and different material |
4.Configuration instructions
| No. |
Main parts
|
SUPER series horizontal sand mill machine | Notes |
| 1 | Material of External Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | 9Cr18Mo Alloy steel,Silicon Carbide Ceramics, SUS 304 Stainless Steel Available | |
| 3 | Dispersing shaft |
40Cr with hard chromium plating
|
|
| 4 |
Dispersing disk (agitator disk) |
SUS 304 stainless steel , 9Cr steel, PU | |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | Gaps can be calculated according to customer's requirements |
| 7 | Mechanical seal |
intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 8 | Feeding pump |
1”, 1.5", 2" ARO diaphragm pump;
|
Brand: Ingersoll Rand |
