1.4L Pesticide Laboratory Grinding Mill 304ss Chemical Liquid Bead Mill Process

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: MINI1.4
Minimum Order Quantity: 1set
Price: USD2000--USD8000/set
Packaging Details: Wooden box
Delivery Time: 20-30 Working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Litre: 1.4L Power: 4kW
Production Way: Laborytory Bead Mill Wegit: 600kg
Explosion: Non Ex Proof Materials: 304 Stainless Steel Or Other Need
Voltage: 380V Function: Lab Test Or Grinding Small Sample
High Light:

1.4L Pesticide laboratory grinding mill


304ss Chemical Liquid laboratory grinding mill


304ss Chemical Liquid bead mill process

Product Description

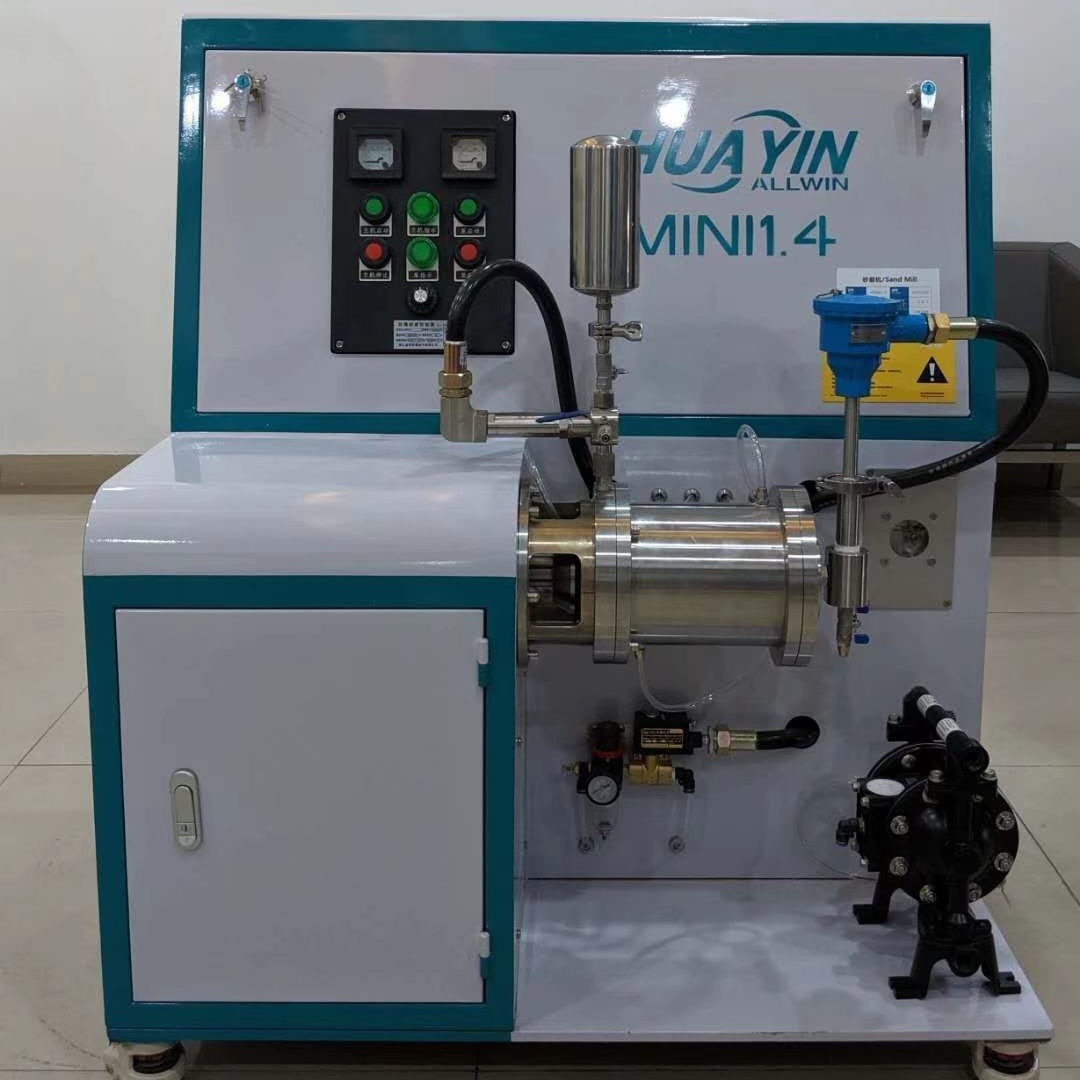

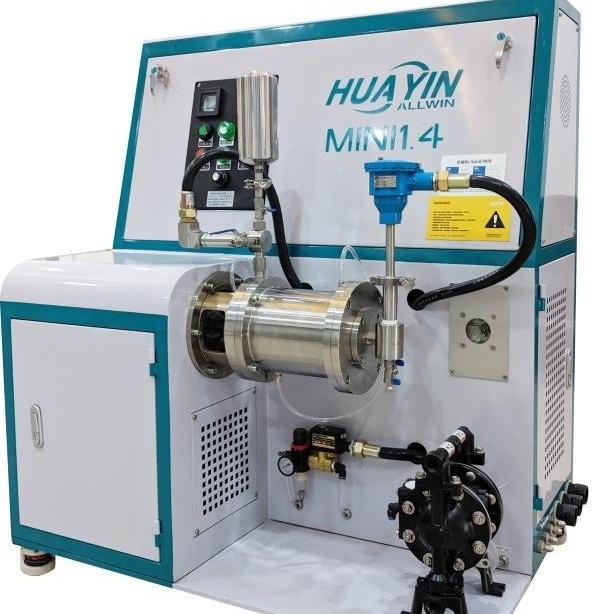

2.2kW 1.4L Laboratory Bead Mill For Paint Coating Pesticide Chemical Liquid

This laboratory Bead Mill is widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing. have model from 0.6-2.L for meet different needs. If need we could offer the 2sets dispersing systems: both Disepersing disk and pegs.


The Main Technical Parameter:

NO Items MIN1.4 Note

Effective Volume(L)

2 Main power 4 kW EX-proof 380V 50Hz

Cooling water consumption


1 m3/h the cooling water lower than 10℃. Is better
4 Mechanical seal

Integral single end mechanical seal reinforced lubrication system

5 Bearing NSK bearing
6 Feed pump G1/2” ARO diaphragm pump
7 Outer Chamber 304 stainless steel
8 Inner chamber silicon carbide ceramics
9 Dispersing disk wear resistant alloy steel
10 Discharging way 304 stainless steel, Screen ring static discharge
11 Feeding and discharging end covers on the chamber 304 stainless steel
12 Appliance Delixi
13 Frequency converter with
  • No explosion proof, away from the scene


1.4L Pesticide Laboratory Grinding Mill 304ss Chemical Liquid Bead Mill Process 0
The After Sales Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.

Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.

1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
